Our electric motors are suitable for any applications and uses with exceptional performances. Chtmotor.com products comply with the directives about product as required in all EU countries, to ensure an appropriate safety standards.

Products range

Hygienic motors – IP69K serie matt
Asynchronous three-phase motors – IE4 IE3 IE2
Asynchronous single-phase motors
Asynchronous brake motors
Asynchronous compact motors
Other types

Chtmotor Hygienic Electric Motors are particularly used in machinery and systems for the Food & Beverage Industry, Pharmaceutical Industry and generally in all the aseptic environments where an IP69K degree of protection is necessary. The most typical industrial sector Hygienic Electric Motors are used for is the Food & Beverage Processing and Handling sector, where frequent cleaning procedures are mandatory in the production of:

Poultry and Meat
Seafood and Fish
Cereals and Pseudocereals
Produce
Milk and Dairy products
Bakery products and Confectionery
Alcoholic and Non-alcoholic Drinks

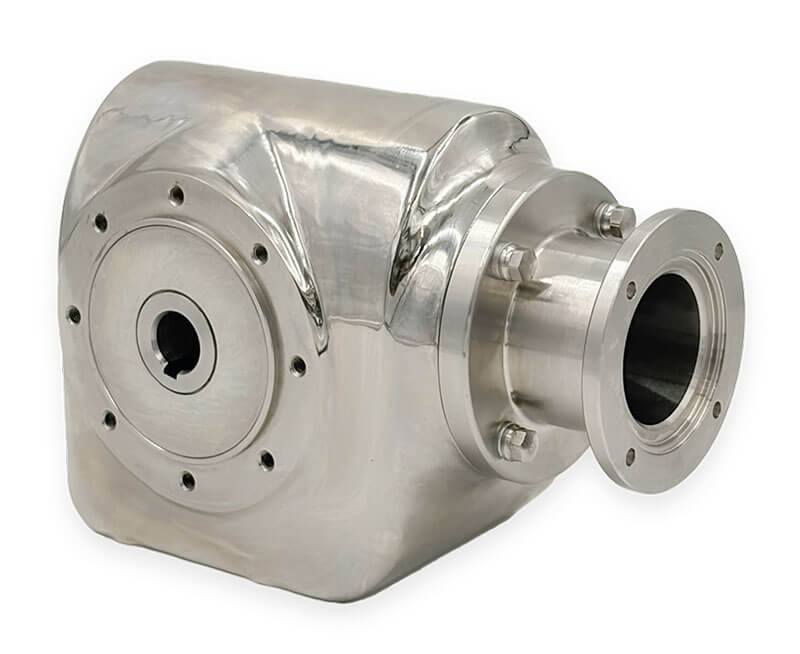

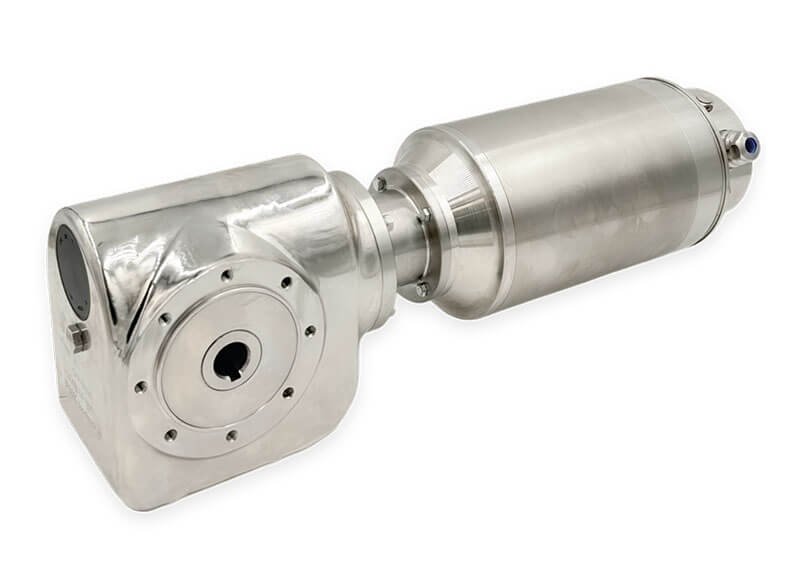

The Hygienic series gearboxes and gearmotors have been developed with a fluid design without sharp edges, designed to prevent product accumulation during production processes or in the presence of liquid and dusty substances.

The AISI 304 stainless steel structure with a mirror-polished finish guarantees a hygienic surface, resistant to external agents and easy to sanitize. The input interface is compatible with IEC motors and can be easily adapted thanks to an interchangeable flange and joint system. The elastic joint also helps protect the reducer from stress during starts and stops.

Sul lato uscita, i riduttori sono equipaggiati con alberi cavi metrici in acciaio inox AISI 304, varie opzioni di flange e bracci di reazione. Il sistema di tenuta è potenziato con doppi anelli FKM e un lamierino di protezione, che consente di raggiungere un elevato grado di protezione IP69K.

Grazie a queste caratteristiche, la serie Hygienic è ideale per applicazioni nei settori della trasformazione alimentare (carne, pesce, ortofrutta, latticini, farine e derivati, prodotti da forno, mangimi), dell’industria farmaceutica e chimica, nonché per impieghi nel settore navale, nel packaging alimentare, nell’imbottigliamento e in ambienti con elevata esposizione a sostanze corrosive o condizioni atmosferiche avverse.

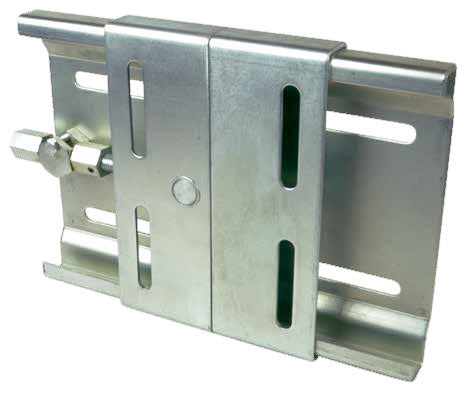

Slides for electric motors are designed to solve the problem of belt tension in power transmissions. Their compact shape and slotted fixing holes allow for easy assembly and an equally simple pulley alignment system. The slides are made of galvanized steel sheet to better protect the slide from oxidation and corrosion.

Slide motor bases allow the wheelbase variation for those transmissions using double expanding pulleys. Furthermore they are conceived and used for belt tensioning in transmissions with standard V groove/timing pulleys.

The compactness and the slotted fixing holes allow an easy assembly and setting.
The features allow the removal of the belt and and the regulation of its tension without removing the motor.

Compact slides SX and SS are suitable for electric motors from size 56 up to 200. Rails SA-SB-SC are suitable for motors up to size 355.

Variable speed pulleys

Variable speed pulleys are the power transmission components which allow the setting of the axle speed in an easy, quick, continuous and cheap way. We offer a full range of variable speed pulleys for every industrial application, ensuring the best functionality and the longest possible life.
